3D Illusion Mandala Night Light, Edge-Lit Acrylic Laser Cut File (SVG)

Details

This 3D illusion svg features a detailed mandala design with layered geometric lines that create a torus-like optical illusion when illuminated. Designed for laser cutting an edge-lit acrylic night light, it suits makers creating a mandala lamp design or adding a digital mandala file to their physical product catalog. The downloadable SVG includes color-coded cut, score, and engrave paths for laser operation.

Welcome to RealMKOIDigital!

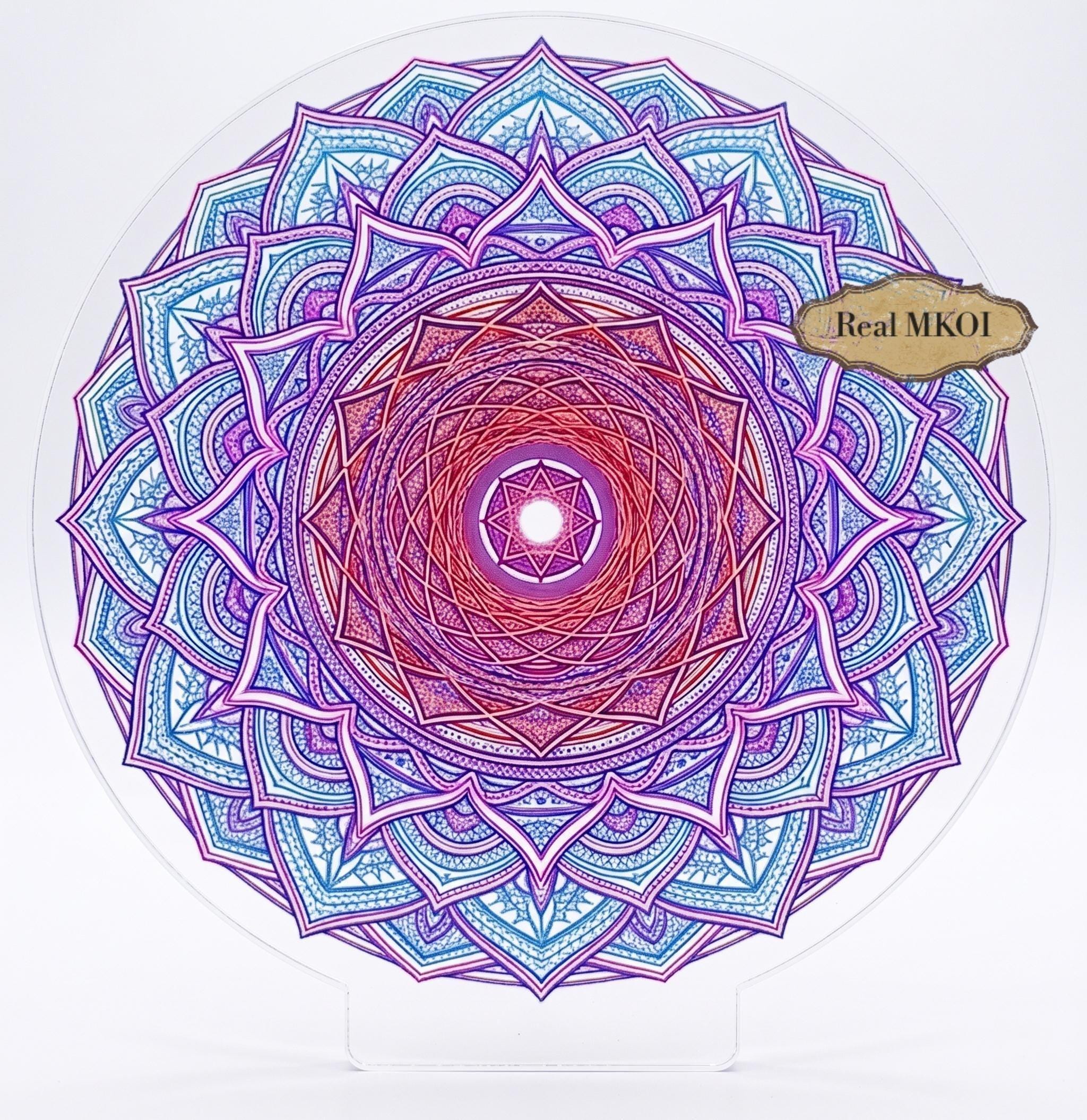

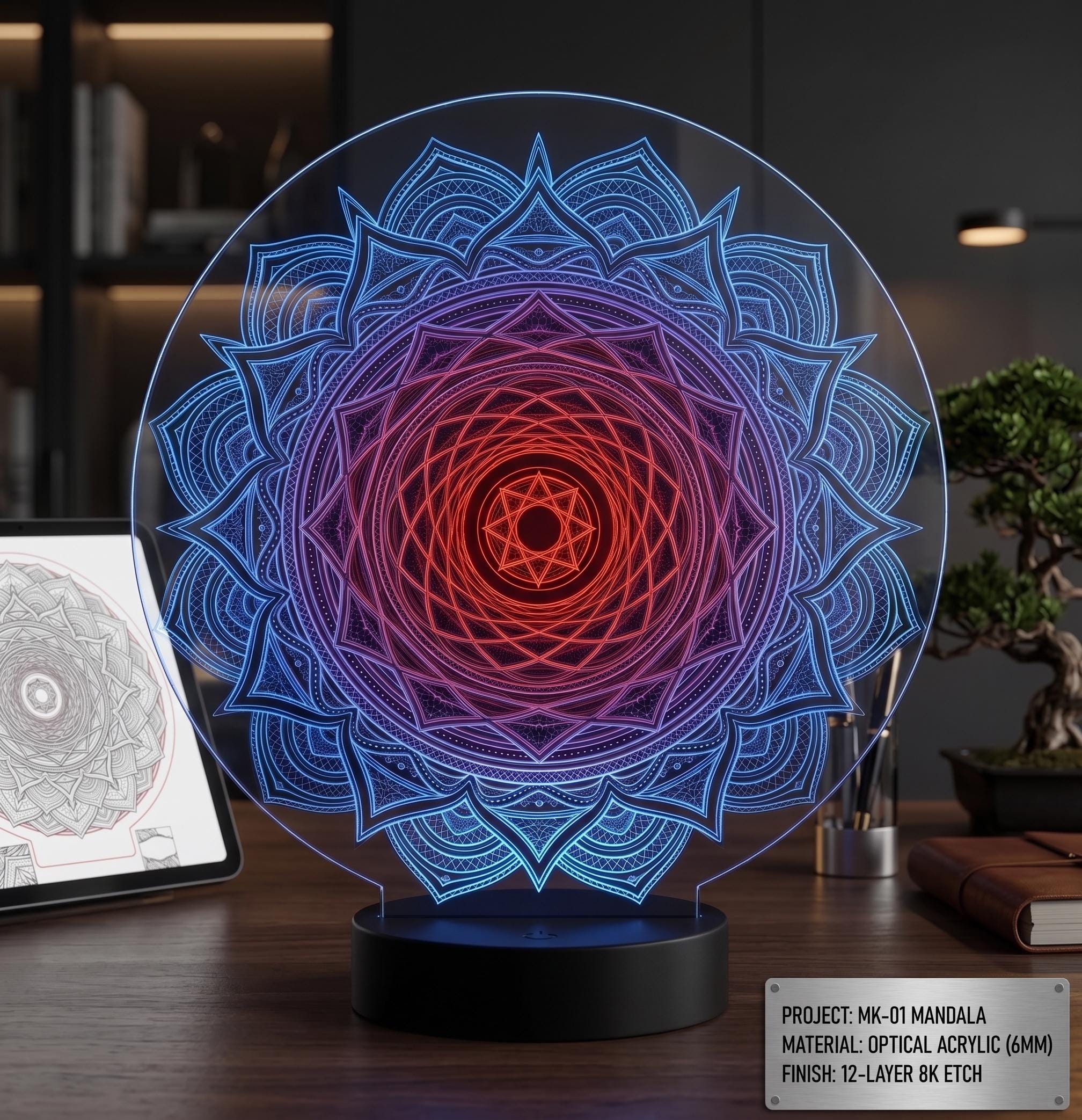

Create a stunning, multi-dimensional optical illusion with this highly detailed Intensive Mandala laser cut file. Specifically designed for edge-lit acrylic night lights, this file uses 16-point mathematical symmetry and densely overlapping geometric layers to trick the eye into seeing a 3D torus shape when illuminated.

Perfect for gifts, home décor, or adding a premium technical design to your own physical product catalog.

What You Get

1 High-Resolution SVG Vector File

Color-coded paths optimized for Cut, Score, and Engrave operations

Clean, scalable nodes with zero overlapping errors

Design Specifications

Base Tab Dimensions: 70mm wide x 15mm deep (Designed to fit standard universal LED wood bases)

Overall Dimensions: 190mm diameter (Scalable, but tab size must be manually adjusted if scaled)

Material Recommendation: 4mm Cast Acrylic (Do not use extruded acrylic, as it will not frost properly for the 3D light effect)

Laser Operation Key (Pre-set in file):

Black: Cut (Outer Profile & Tab)

Cyan/Blue: Deep Engrave (Outer Petals)

Magenta: Score / Fast Cut (Intersecting Mid-Webs)

Red: Light Engrave (Dense Inner Core)

Please Note:
This is a DIGITAL DOWNLOAD ONLY. No physical product or LED base will be shipped to you. Your file will be available for instant download immediately after purchase.

Due to the digital nature of this product, all sales are final, but please reach out if you have any questions about running the file on your specific machine!

This is not a Physical Product it is a digital Jpg file
