3D Mandala SVG Mega Pack, 5 Designs, 12 Layers Each (Digital Download)

Details

3D mandala SVG files form a five-design collection with 12 layers per design, shown as intricate relief mandalas in the preview image. This digital download is for laser cutting and includes layered SVG and DXF files with full-size vector PDF backups for each design. The collection includes celestial, botanical, ocean spiral, Gothic rose window, and Art Deco geometric designs.

The MKOI Atelier Collection Mega Pack
Welcome to the Atelier Collection, a bundle of intricate relief mandalas drawn as connected cut geometry. This Mega Pack includes 5 distinct designs and 60 individual layers total, delivering a different visual language for every piece. Please note that this listing is for digital files and digital assembly previews only; no physical materials are included.

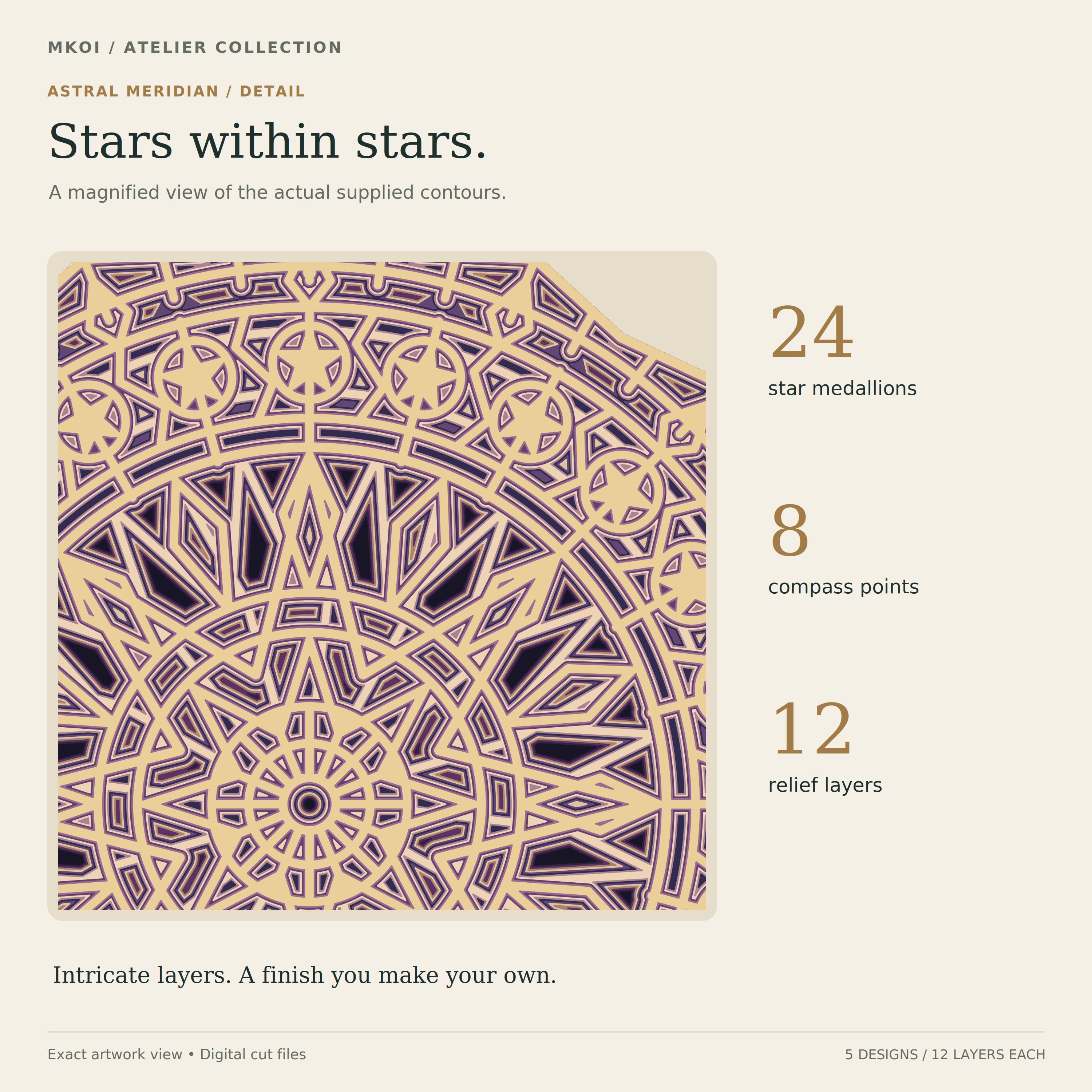

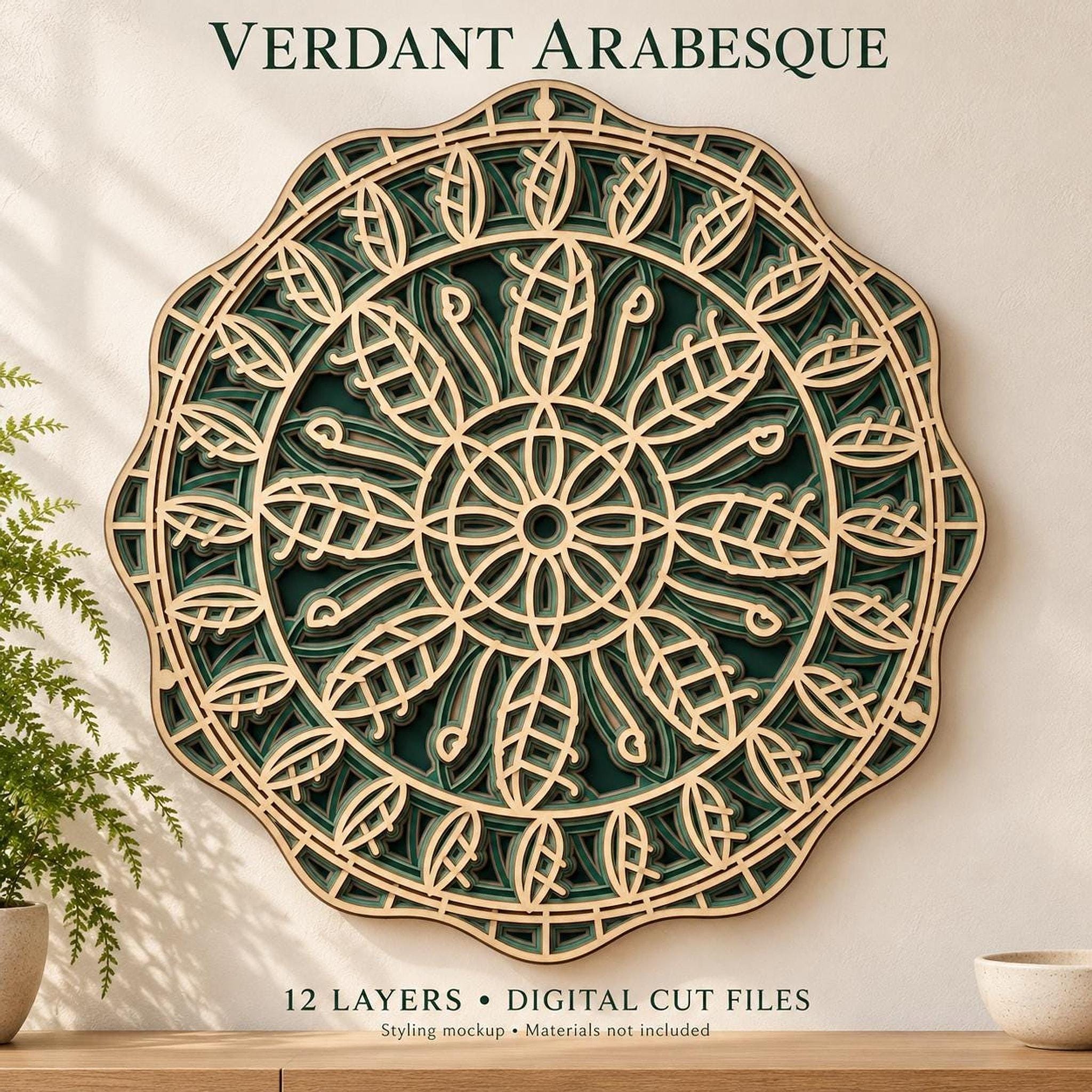

Five Distinct WorldsAstral Meridian: This celestial compass design features 12 layers. It is framed by 24 miniature pentagrams, nested star polygons, and a sixteen-point crown. Verdant Arabesque: A botanical filigree design consisting of 12 layers. It showcases eight sweeping acanthus leaves growing around a flower rosette, complete with a twenty-four-leaf garland and coiled tendrils.

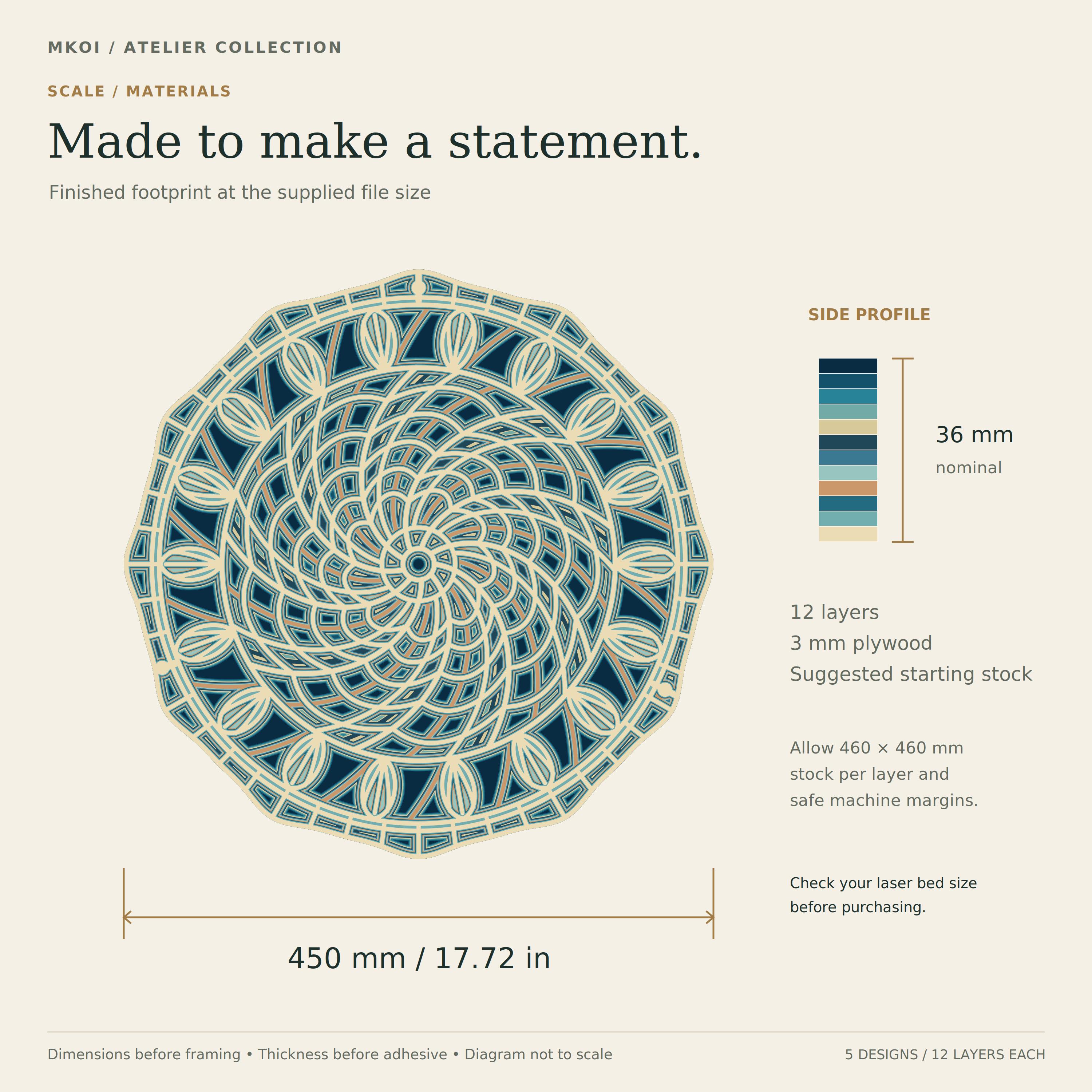

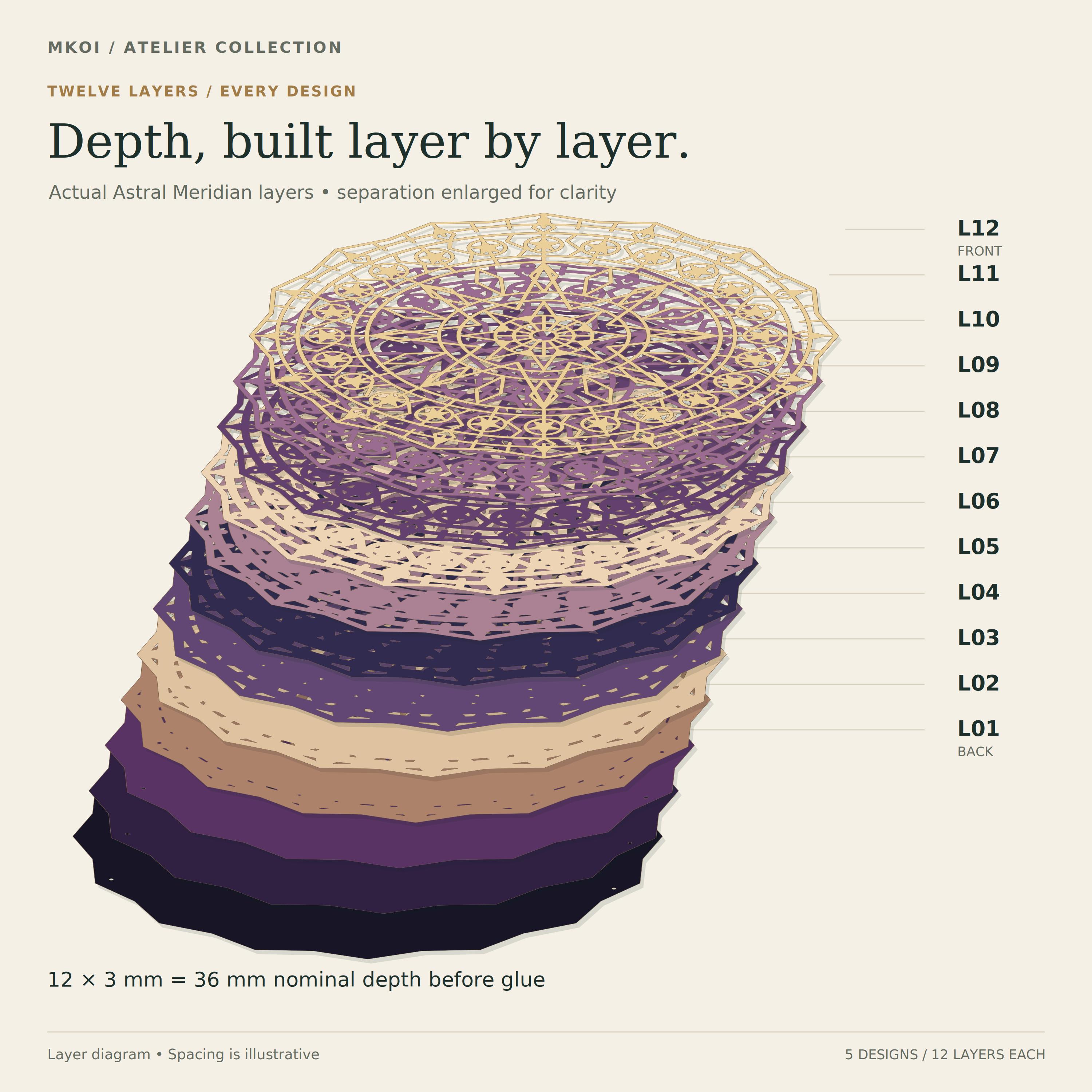

Tidal Nautilus: An ocean spiral piece made of 12 layers. Nine continuously turning arms create a directional nautilus spiral, framed by an outer band of eighteen ribbed shell fans. Nocturne Rose: A Gothic rose window design with 12 layers. It features twelve Gothic lancets, twenty-four small pointed arches, and quatrefoil tracery surrounding a twelve-petal rose. Solstice Prism: An Art Deco geometry mandala containing 12 layers. A hexagonal star anchors twelve stepped Art Deco fans, twenty-four faceted diamonds, and an angular sunburst rim. Technical SpecificationsDimensions: Each finished footprint measures 450 x 450 mm (17.72 x 17.72 in) before framing. Depth: The design uses 12 layers per mandala, totaling a 36 mm nominal depth before glue and finishing.

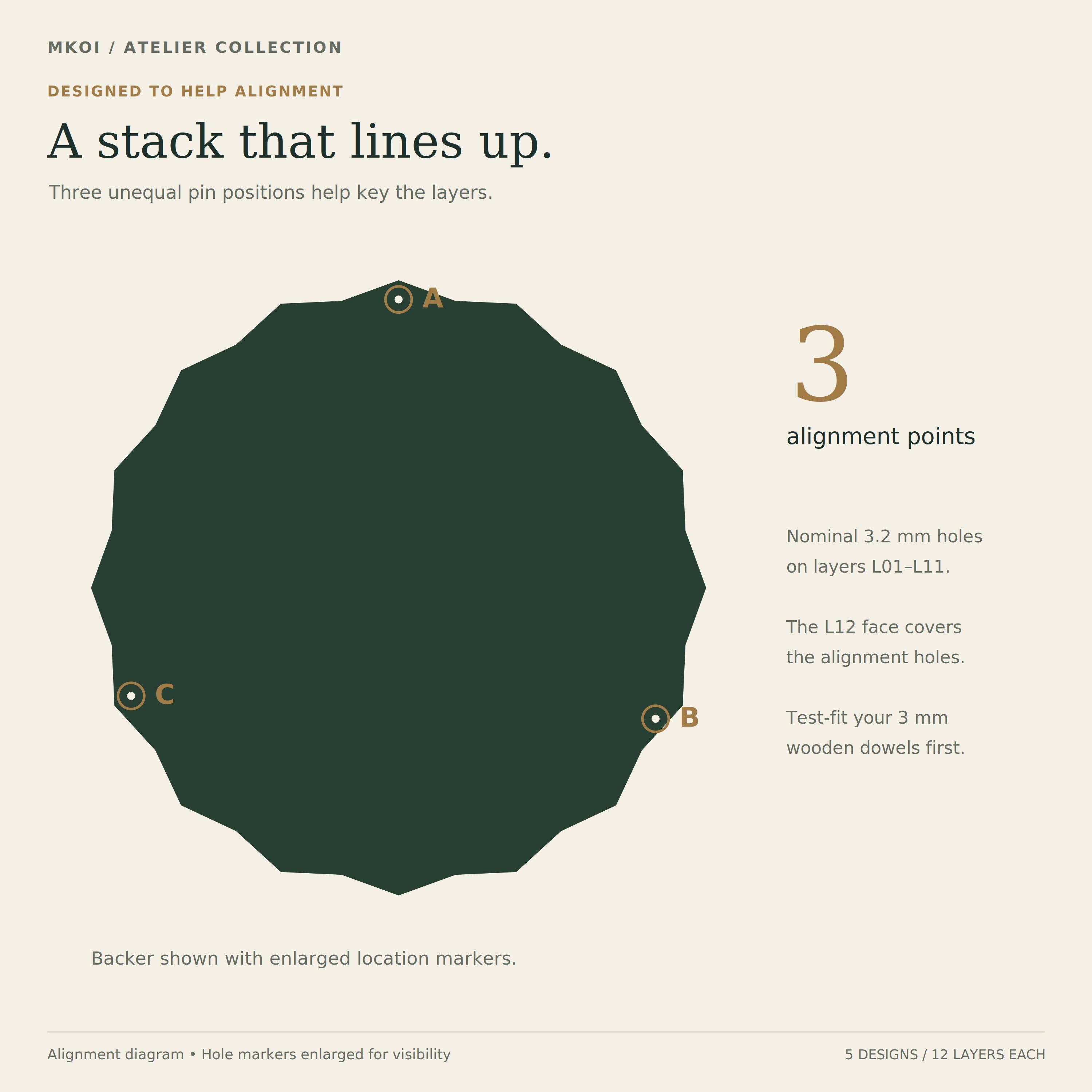

Suggested Material: The files are designed for nominal 3 mm laser-suitable plywood. You will need twelve blanks of at least 460 x 460 mm per design. Hardware: Assembly requires three nominal 3 mm wooden dowels, wood adhesive, and a flat pressing surface.

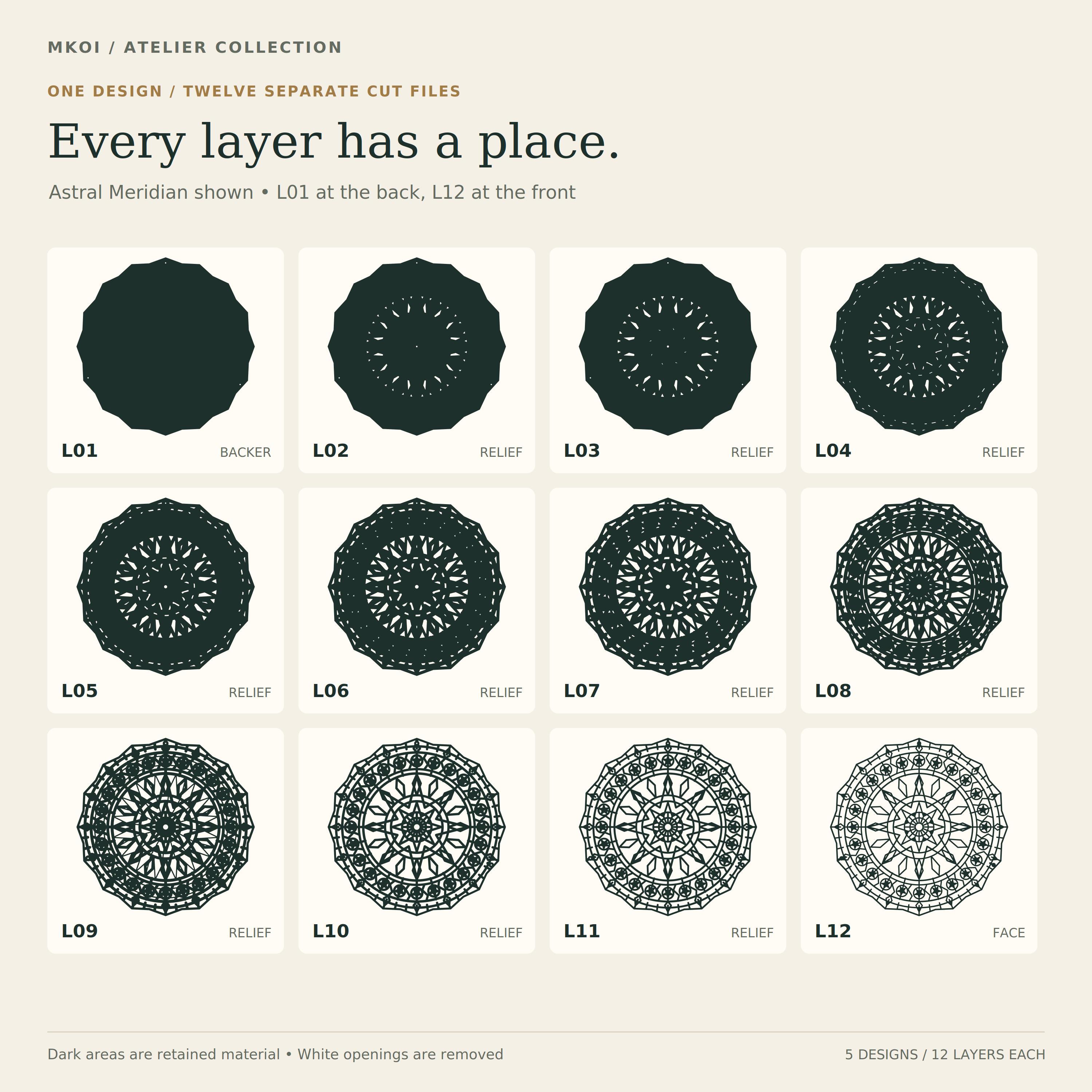

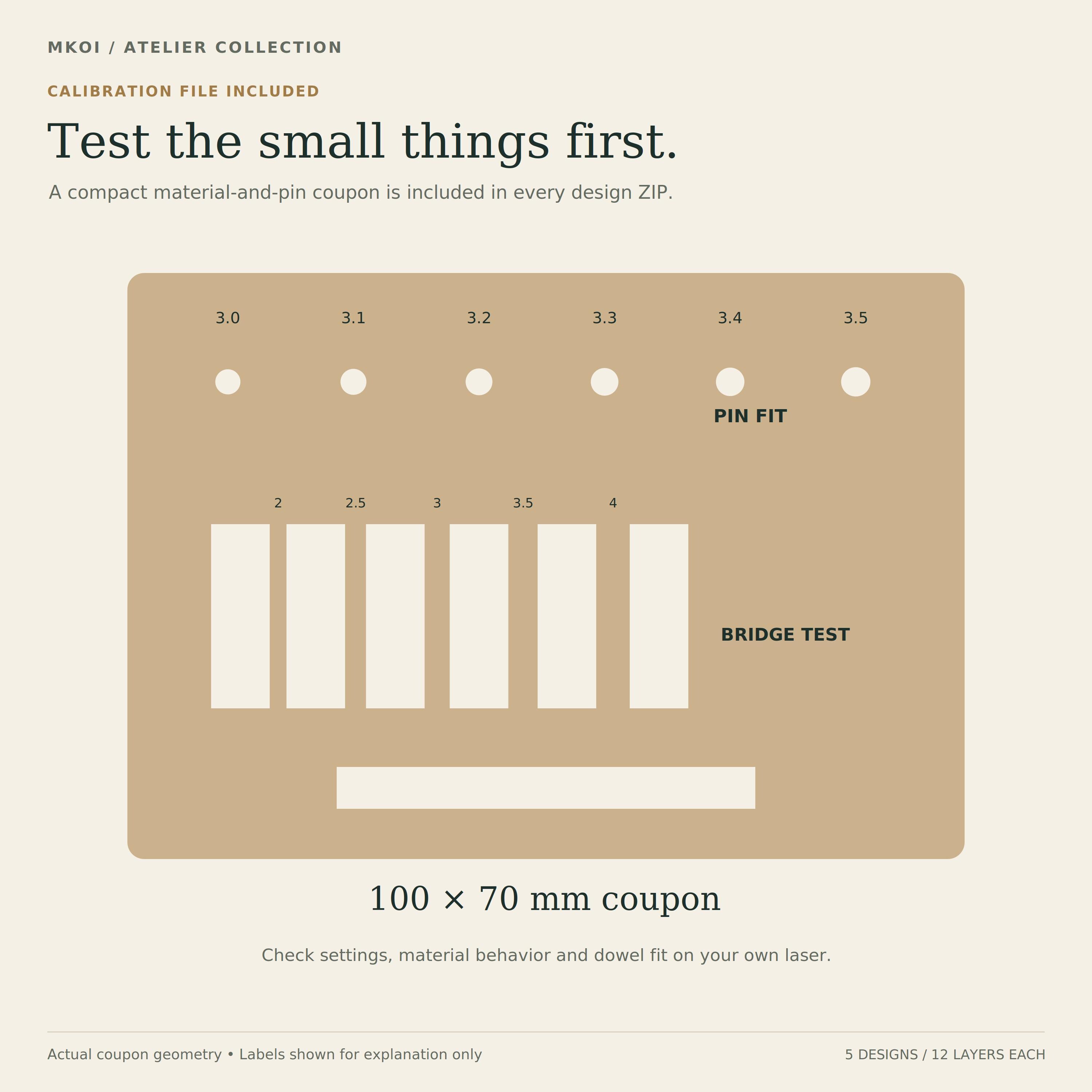

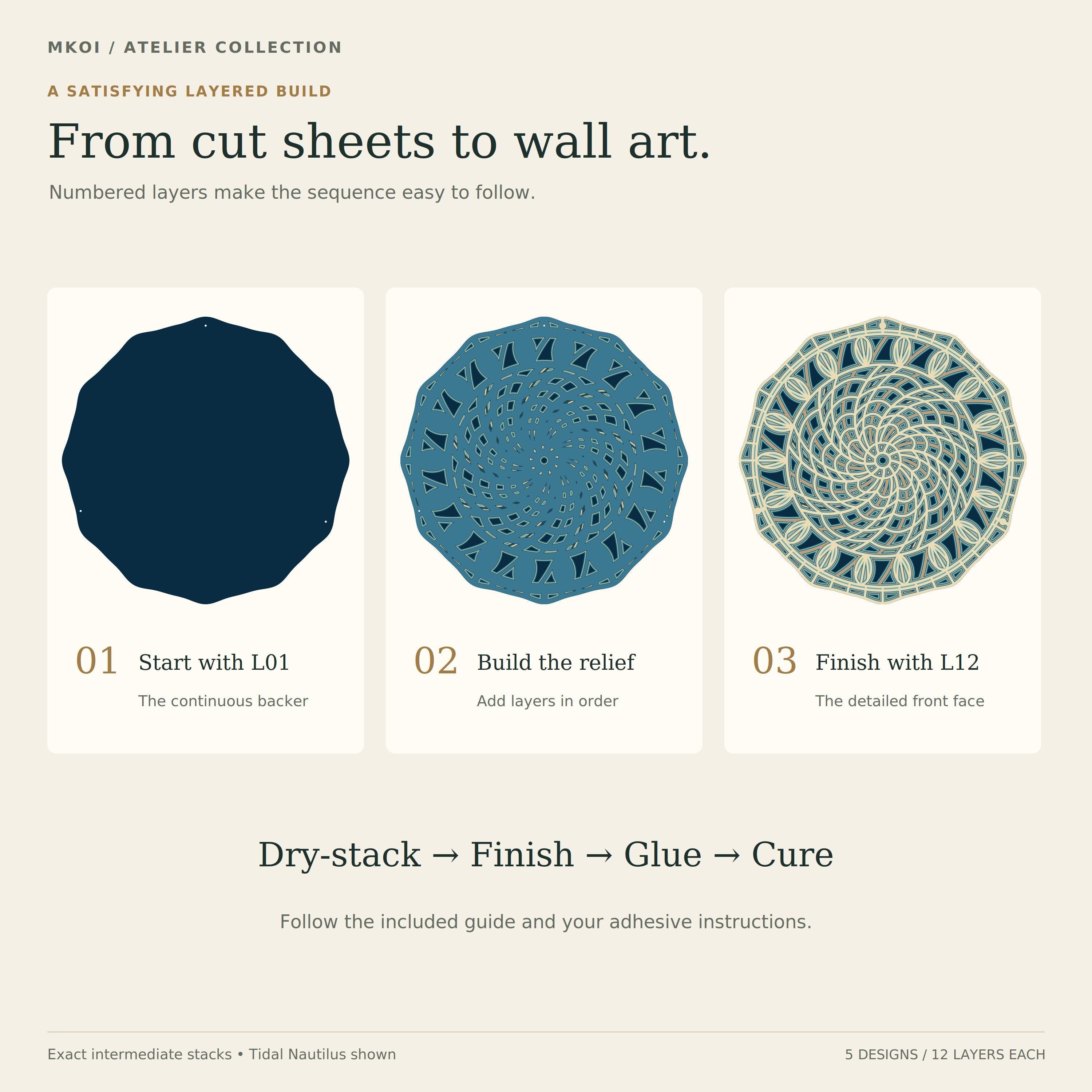

File Formats: The download includes SVG and DXF files for individual layers, plus full-size vector PDF backups. What's IncludedFive separate ZIP archives containing the designs, each coming in at under 20 MB. Files supplied at the native 450 x 450 mm scale, with layer 01 acting as the back and layer 12 acting as the face. Three color recipes per design to help visualize finishes. A 100 x 70 mm calibration coupon to test your specific stock and laser kerf. \

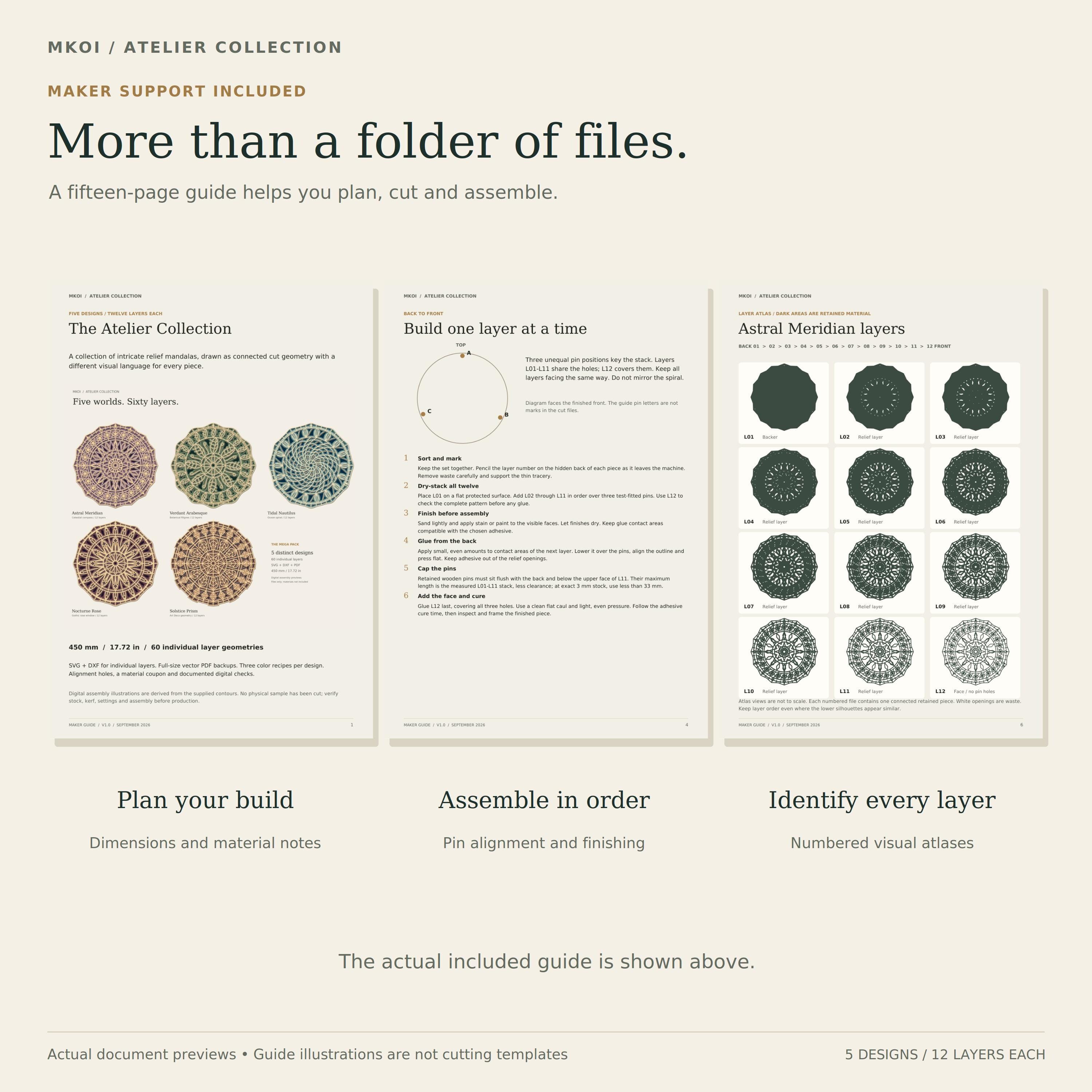

The comprehensive MKOI-Atelier-Maker-Guide.pdf detailing material tests, assembly steps, and digital quality reports. Important Maker NotesThese digital files have passed 60/60 connectivity checks, but no physical sample has been cut. Always verify your stock, kerf, settings, and assembly before full production. Run the included calibration coupon and complete prototypes before proceeding to final production. Retain the supplied 450 mm size for your first sample; resizing the design will reduce every bridge, aperture, and alignment hole, requiring a new material test and corrected pin-hole sizing.
